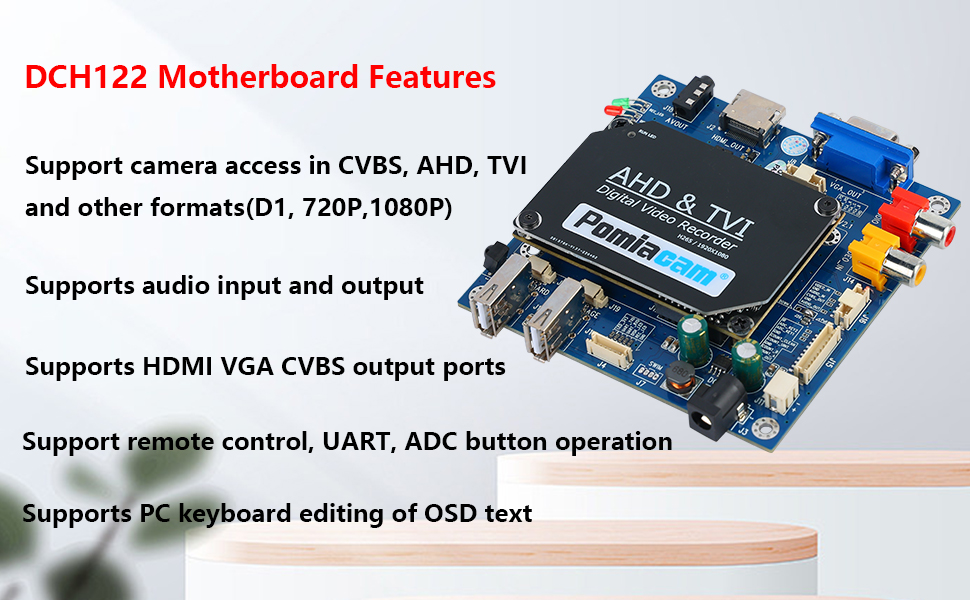

DCH122 Motherboard Features

DCH122 Motherboard Features

Support camera access in CVBS, AHD, TVI and other formats(D1, 720P,1080P)Supports HDMI VGA CVBS output portsSupports audio input and outputSupport remote control, UART, ADC button operationSupports PC keyboard editing of OSD text

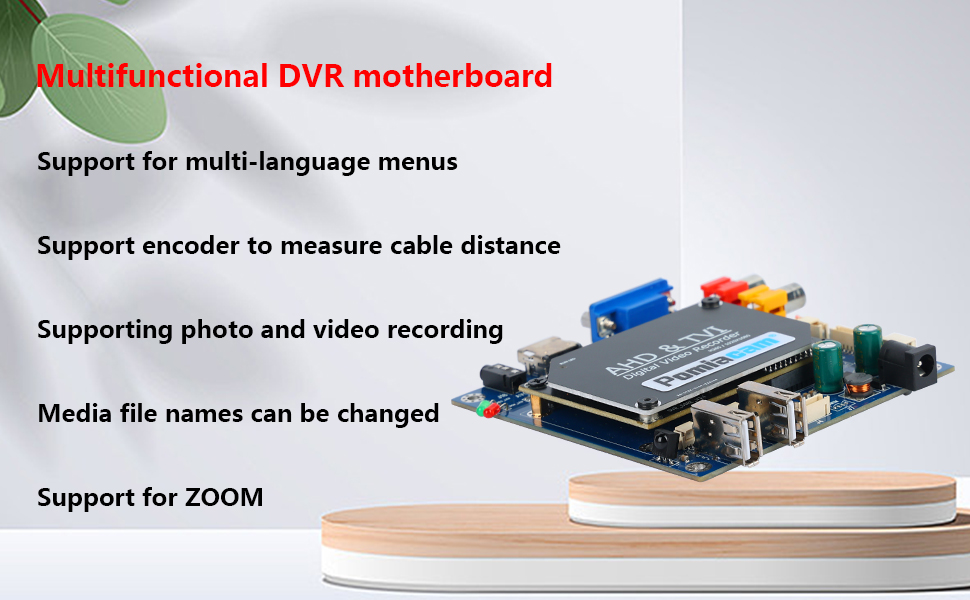

Multifunctional DVR motherboard

Multifunctional DVR motherboard

Support for multi-language menusSupport encoder to measure cable distanceSupporting photo and video recordingMedia file names can be changedSupport for ZOOMUsb flash drive storage(SD card storage needs to add conversion circuit).CurreyA 512G Usb flash drive has been tested, which can theoretically support larger diSk spaceSupports MP4 video file formatSupports image luminance chromaticity contrast adjustment

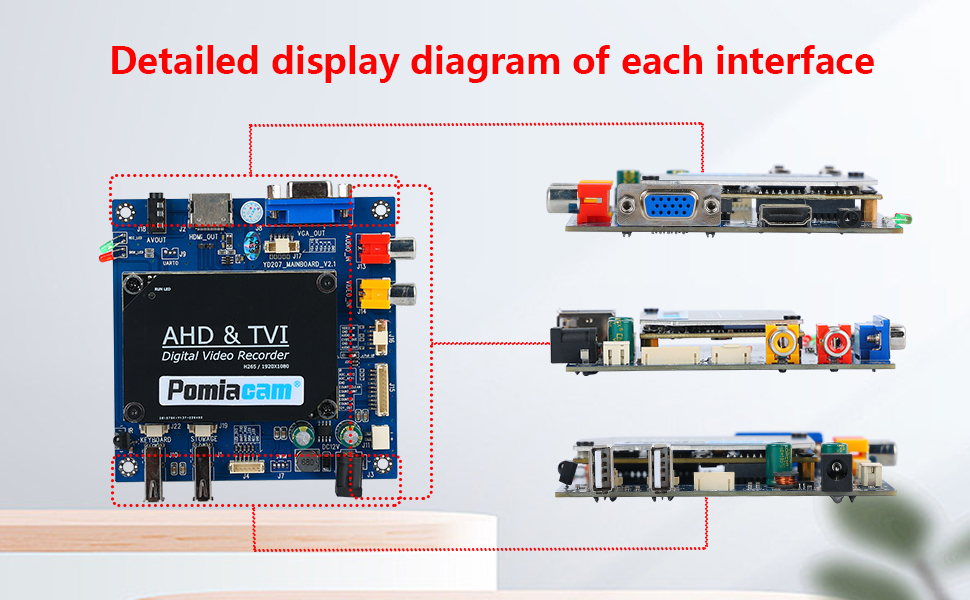

Detailed display diagram of each interface

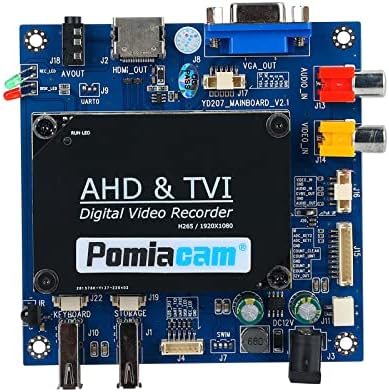

DCH122 motherboard is a video storage motherboard specially developed for the industrial endoscope market. It provides a variety of video formats for input, including AHD, TVI, CVBS and other formats, and HDMI, VGA, CVBS and other interfaces for output, which is convenient for you to choose freely.

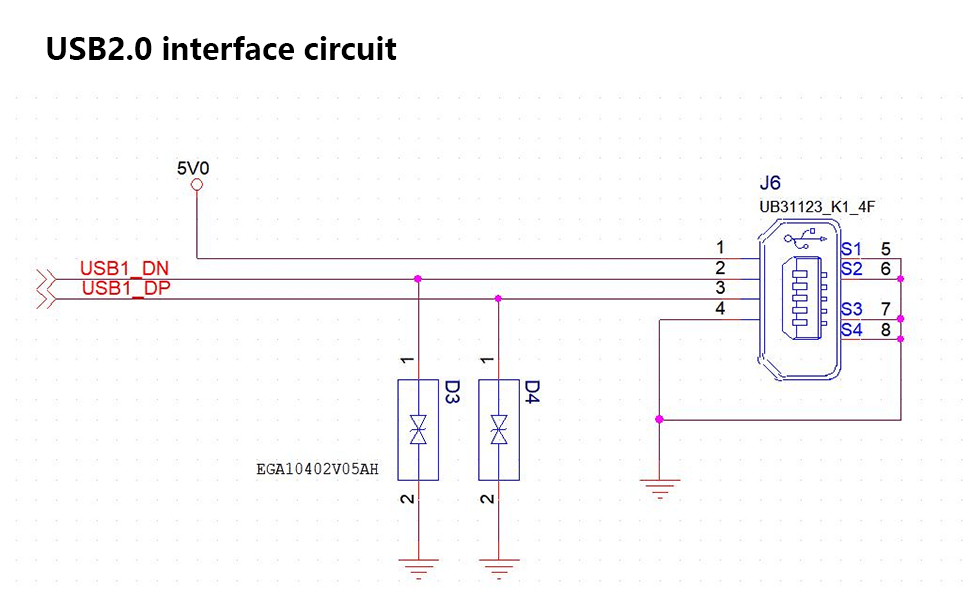

USB2.0 interface circuit

Description: USB requires the user to provide a 5V power supply, the current of the power supply is determined according to the actual scene, and it needs to be well filtered.It is recommended to use DCDC for voltage reduction and short-circuit protection. At the same time, ESD devices must be placed on the two USB DP DN data lines.The smaller the junction capacitance is, the better it is. The ESD device option should be dedicated to USB. The varistor used in the figure is. The ferential pair cable length of the USB2.0 connected to the USB connector is less than 8inch. When the IC or module is connected to the USB2.0 board, the differential signal cable length shall not be

greater than 10inch. The differential impedance of USB cable is controlled at 90 Ω.

MINI DVR Main menu

MINI DVR Motherboard Main menu

Note: The above main menu, divided into 5 parts, video playback, picture playback, system Settings, image Settings, video Settings, can be operated through the key.

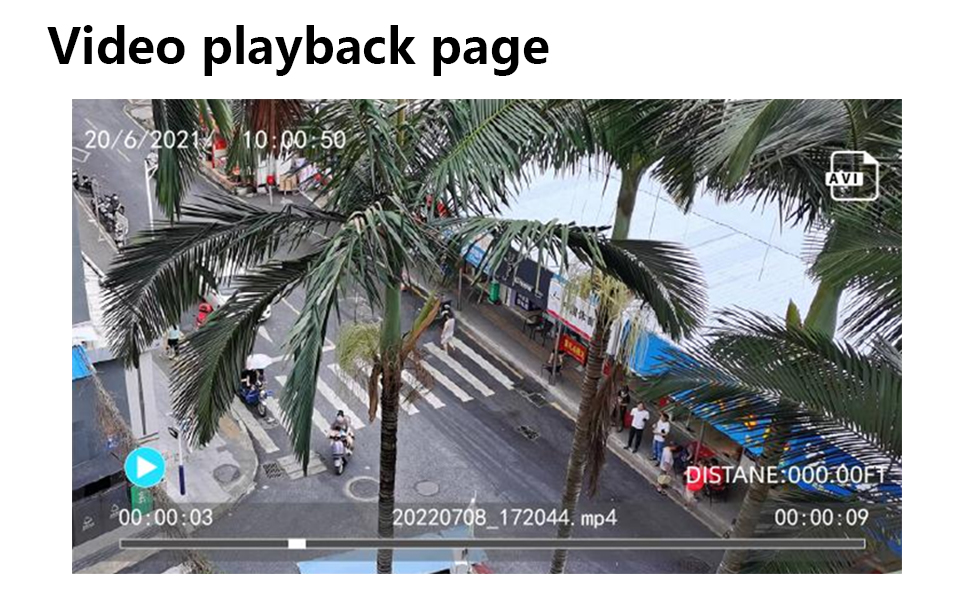

Video playback page

Note: The figure above shows video playback: “LEFT” and “RIGHT” keys control fast forward and

backward, “UP” and “DOWN” keys control volume, “PLAY” keys control PLAY and pause, and

“STOP” keys STOP playing.

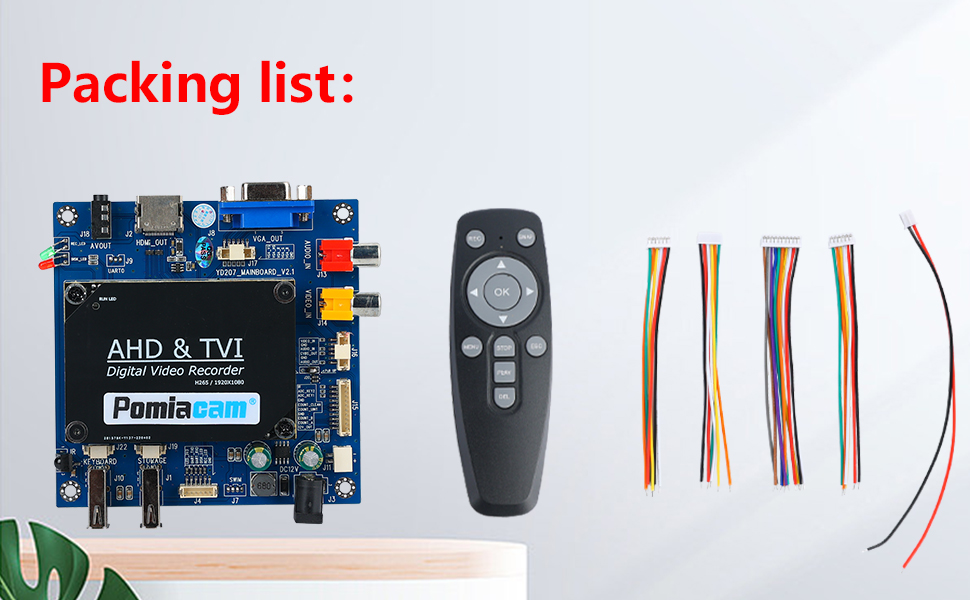

Packing list

DVR motherboard*1

Remote control*1

1.5 10P line*1

1.5 6P line*3

2.0 2P line*1

1CH DVR motherboard manual can be sent by email. You can customize the startup screen. If you need to customize the startup screen, you can email me.

dvr motherboard，mini dvr，1ch dvr，dvr board ahd 1080p，mini dvr recorder，motherboard vga port，hdmi to cvbs board，1080p hdmi registratore multi-track，hdmi capture，ahd camera recorder hdmi，ahd tvi dvr 1ch camera recorder hdmi

【DVR Motherboard】DCH122 motherboard is a video storage motherboard specially developed for the industrial endoscope market. It provides a variety of video formats for input, including AHD, TVI, CVBS and other formats, and HDMI, VGA, CVBS and other interfaces for output, which is convenient to choose freely.
【Compared with other DVRS】DVR Motherboard has less image quality attenuation, making the image more fidelity. In the scenario of long cable transmission, DVR Motherboard has lower signal requirements, and costs ordinary PC keyboard to access real-time OSD editing, file name modification, serial communication and other functions. Using this module can greatly shorten the user’s product development cycle!
【Support multi-function】DVR Motherboard Support CVBS, AHD, TVI and other formats (D1, 720P, 1080P) camera access, HDMI VGA CVBS output interface, audio input and output, remote control, UART, ADC key operation, support PC keyboard to edit OSD text
【AHD&TVI HD VIDEO PRECESSING 】DVR Motherboard Support multi-language menu, support encoder to measure cable distance, support photo and video recording, media file name can be changed, support scaling, U disk storage (SD card storage needs to add conversion circuit), support MP4 video file format, support image brightness and chromaticity contrast adjustment
【Customizable & Warranty Period】We gift a 12-month warranty period. Feel free to contact me with any questions. You can customize the startup screen, if you need to customize the startup screen, you can contact me by email, this is my email: sales09@autopvision.com
