$13.99
If you are into Arduino, and you are in need of some bread-boarding, then this is for you.
If you are inclined to do some prototype work using the Arduino UNO this is a bargains shield.
The board shield has a dedicated reset button and one uncommitted button, and two really BRIGHT LEDs which could probably be tamed a bit by replacing their current-limiting resistors.
There are pins on the underside which will fit certain Arduinos and headers on the top side with the same signals and arrangement as well.
Features:
Removable, swappable, and very durable
The shield is very well built and far more solid
A Protoshield proto expansion board work with Arduino Duemilanove
This shield helps a lot in doing circuit prototyping with Arduino
Handy for projects involving a small amount of custom circuitry
It’s very nice looking, all gold plated both sides, nice variety of traces and pads for prototyping, all the components are neatly hand soldered
Can solder element on the board or via mini bread board
All the pins and power have been lead out
Description:
The mini breadboard:
170 tie points. Self-adhesive backing to stick on the Arduino Protoytpe Shield
Mini breadboard size: 4.7 x3.5 x1cm
Breadboard Jump Wires:
65 Pieces jumper wires for easy connecting to breadboard or the protoshields
Prototype Size:7cm x 5.4cm x 2cm
This product is useful if you want to breadboard a fairly small circuit right on top of the Arduino UNO itself
There are two uses for a proto-shield:
1.To build your own permanent custom circuit on, and as a mounting bracket for a breadboard
b>Package included:

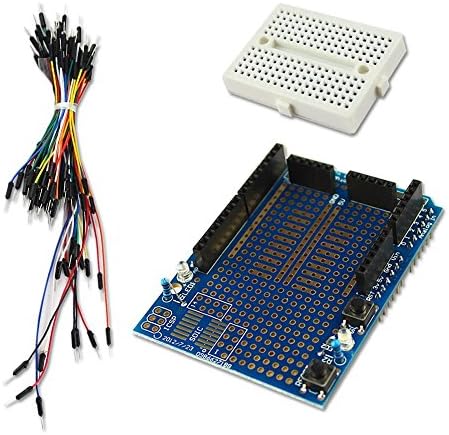

1 x Ardess Prototype Shield
1 x Mini Breadboard
65x Jumper Cable
Ardess Prototype Shield: work well for Arduino uno microcontroller.The board fits on top of the Arduino Uno R3.Very easy to hack for your projects
Unlike the Adafriut one, which was offered as a “solder it yourself” kit, this proto shield board is fully assembled and the construction is good.The mini breadboard comes with sticky back tape; you peel off and stick to the shield if you want
Very useful board for fast prototyping: Great proto shield for the Arduino.This was fantastically easy to use and blended in well with the Arduino UNO.Great for quick grab-n-go projects
There are 2 LEDs and a button for your use. Neither is connected to any pins, so you have the flexibility to connect these as you see fit. (Both the LEDs & button are connected to GND)
There is also a reset button on top of the prototype shield so you can still manually reset the Arduino if you need to (normally with older Arduinos, shields may block easy access to the reset button)
Product Dimensions | 0.28 x 0.21 x 0.08 inches |
---|---|
Item Weight | 1.76 ounces |
Manufacturer | Ardest |
ASIN | B073RC2KWC |
Country of Origin | Andorra |
Item model number | proto shields board |
Is Discontinued By Manufacturer | No |
Date First Available | July 5, 2017 |
